- **Transparent PCI-to-PXI and PCI-to-PCI Extension:** Provides seamless bus extension with no additional drivers or software required. All devices appear as local PCI devices to the host system. - **StarFabric High-Speed Serial Link:** Employs 622 Mbps LVDS signaling per pair, with four transmit and receive differential pairs providing 2.5 Gbps full-duplex bandwidth (5 Gbps total). - **Full PCI Bandwidth Support:** Supports 32-bit/33MHz (132 MB/s) and 64-bit/66MHz (528 MB/s) PCI bus operation. - **Multi-Chassis Capability:** One master module can control up to two slave PXI-8570 modules, enabling star or daisy-chain configurations for multi-chassis systems. - **Hardware and Software Transparency:** 100% compatibility with existing PCI drivers, BIOS, and operating systems. - **Robust Connectivity:** Uses shielded twisted-pair copper cabling with DVI-D or RJ-45 connectors for reliable signal integrity up to 10 meters. - **Industrial-Grade Design:** Designed for industrial automation, test and measurement, and military/aerospace applications. - **Comprehensive System Options:** Available as 4-slot (PCIS-8580-4S) or 13-slot (PCIS-8580-13S) extension chassis with integrated power supplies and cooling systems.

Manufacturer: Adlink Technology Inc.

Category: Bus Extensions

- **Transparent PCI-to-PXI / PXI-to-PXI Extension:** Enables direct control of PXI or CompactPCI systems from a host PC or controller without additional drivers or software layers. - **Multi-Chassis Configuration:** Supports up to two PXI/CompactPCI chassis from a single PCI-8570 master card, allowing flexible system expansion. - **StarFabric Architecture:** Utilizes StarFabric serial interconnect technology with 622 Mbps LVDS signaling per differential pair, achieving up to 2.5 Gbps full-duplex bandwidth per link. - **High-Speed PCI Bus Support:** Compliant with 64-bit/66 MHz PCI local bus specifications (Rev. 2.2) and PCI-to-PCI bridge architecture (Rev. 1.1), providing up to 528 MB/s peak throughput. - **PXI Specification Compliance:** Fully compliant with PXI Specification Rev. 2.0, ensuring compatibility with standard PXI and CompactPCI chassis. - **Hardware and Software Transparency:** Operates independently of operating systems and application software; all devices appear as local PCI devices to the host system. - **Seamless Interrupt Extension:** All interrupts from add-in cards in the extension chassis are passed through to the host system transparently. - **Shielded Copper Cabling:** Uses RJ-45 connectors with shielded twisted-pair copper cables for reliable data transmission up to 10 meters. - **Flexible Topologies:** Supports star and daisy-chain configurations for multi-chassis expansion. - **EMC/EMI Compliance:** Certified to CE and FCC Class A standards.

Manufacturer: Adlink Technology Inc.

Category: Bus Extensions

- **24-Channel Digital I/O:** Provides 24 TTL/DTL-compatible digital input/output lines organized as three 8-bit ports (Port A, Port B, Port C). - **Opto-22 Compatibility:** Fully compatible with industry-standard Opto-22 I/O modules and termination boards, allowing direct connection to external relay, input, and output modules. - **8255 PPI Emulation:** Emulates Mode 0 of the Intel 8255 PPI, enabling flexible configuration of ports as input or output. - **Programmable Interrupt System:** Supports multiple interrupt sources, including digital input lines and timer outputs, with dual interrupt capability. - **Integrated Timer/Counter:** Includes one 16-bit event counter and one 32-bit cascaded timer for event counting and timed interrupt generation. - **Buffered I/O Circuits:** Provides high drive capability and signal buffering for reliable operation in industrial environments. - **Power Output Protection:** Onboard resettable fuses protect the +5V and +12V power outputs available on the Opto-22 connector. - **Software Compatibility:** Supported by ADLINK’s PCIS-DASK driver library for Windows and Linux, as well as LabVIEW™, MATLAB®, and HP VEE™ integration. - **Plug and Play PCI Interface:** Fully compliant with PCI 2.1 specifications, supporting automatic resource allocation (I/O address and IRQ).

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCI

- **48-Channel Digital I/O:** Provides 48 TTL/DTL-compatible digital input/output lines organized into two 24-bit groups. - **Opto-22 Compatibility:** Fully compatible with Opto-22 standard external I/O modules and termination boards. - **8255 PPI Emulation:** Emulates two Intel 8255 Programmable Peripheral Interface chips operating in Mode 0 configuration. - **Buffered I/O Circuits:** Ensures higher driving capability and signal integrity for industrial environments. - **Programmable Timer/Counter:** Includes one 16-bit event counter and one 32-bit cascaded timer for interrupt generation and event counting. - **Dual Interrupt System:** Supports two independent interrupt sources (INT1 and INT2) selectable from digital inputs or timer outputs. - **Plug and Play PCI Interface:** Automatic resource allocation for IRQ and I/O addresses via PCI BIOS; no manual jumper configuration required. - **Power Output Protection:** Provides +5V and +12V outputs on the Opto-22 connectors with resettable fuses for external device protection. - **Software Support:** Includes C/C++ libraries, Windows DLLs, and drivers for multiple operating systems (DOS, Windows 95/98/NT/2000, Linux). - **High Data Transfer Rate:** Supports up to 500 Kbytes/s typical transfer rate. - **Industrial Reliability:** Designed for 0°C to 60°C operation and 5–95% non-condensing humidity environments.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCI

- **High-Density Digital I/O:** 96 TTL/DTL-compatible digital I/O channels organized as four 24-bit ports (Port A, B, C per PPI). - **Opto-22 Compatibility:** Fully compatible with Opto-22 standard 50-pin connectors, allowing direct connection to Opto-22 I/O modules and termination boards. - **8255 PPI Emulation:** Emulates four industry-standard 8255 PPI chips in Mode 0 configuration, providing 24 I/O lines per chip. - **Buffered I/O Circuits:** Buffered input/output circuitry ensures higher driving capability and signal integrity. - **Programmable Timer/Counter:** Includes one 16-bit event counter and a cascaded 32-bit timer for interrupt generation and event counting. - **Dual Interrupt System:** Supports two independent interrupt sources (INT1 and INT2) selectable from DIO channels or timer outputs. - **Power Output Protection:** Provides +5V and +12V outputs on Opto-22 connectors with resettable fuses for external device protection. - **Plug and Play PCI Interface:** Fully compliant with PCI Plug and Play specifications; no manual configuration of IRQ or I/O address required. - **Software Support:** Comprehensive driver and library support for DOS, Windows 95/98/NT/2000, and Linux (via PCIS-DASK/X). Compatible with LabVIEW®, HP VEE™, DASYLab™, InTouch™, ISaGRAF™, and OPC systems. - **Output Status Readback:** Allows software to verify output states for reliable control feedback.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCI

- **High-Speed Data Transfer:** - Sustained data throughput up to **80 MB/s** via 32-bit PCI bus mastering DMA. - Maximum internal transfer rate of **160 MB/s** for digital input using external 40 MHz clock. - **Flexible I/O Configuration:** - **32 software-configurable channels** supporting 16 DI/16 DO, 32 DI, or 32 DO modes. - Two 16-bit ports (PORTA and PORTB) configurable independently as input or output. - **Advanced DMA Architecture:** - **Bus-mastering DMA** for processor-free data transfer. - **Scatter/Gather DMA** for non-contiguous memory access and large data streaming. - Supports **chaining mode** for continuous or circular buffer operation. - **FIFO Buffering:** - Dual **16K-word FIFOs** (input and output) for high-speed buffering. - Programmable almost-empty/full thresholds. - **Clocking and Triggering:** - Internal clock sources: 20 MHz, 10 MHz, or programmable timer (82C54). - External clock input up to 40 MHz. - Independent **trigger inputs (DI_TRG, DO_TRG)** for acquisition and pattern generation. - Supports **handshaking** and **burst handshaking** modes for reliable data exchange. - **Programmable Counter/Timer:** - Onboard **Intel 8254-compatible 3-channel timer** with 10 MHz base clock. - Timer #0 for DI pacing, Timer #1 for DO pacing, Timer #2 for interrupt generation. - **Auxiliary I/O:** - 4 auxiliary digital inputs and 4 auxiliary digital outputs (TTL-compatible). - Useful for control, status, or synchronization signals. - **Active Termination:** - Software-selectable **active terminators** (111 Ω, 2.9 V) for long-distance, high-speed signal integrity. - **Software & OS Support:** - Drivers for **Windows 7/Vista/XP/2000/2003 Server** and **Linux**. - Compatible with **LabVIEW™, DAQBench™, VB.NET, VC++, Delphi, and BCB**. - ADLINK **PCIS-DASK** and **DAQPilot** driver libraries included. - **Plug & Play PCI Configuration:** - Fully compliant with PCI Plug-and-Play resource allocation. - No jumpers or DIP switches required.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCI

- **32 PhotoMOS Relay Outputs:** Each output channel uses a solid-state PhotoMOS relay (SPST Form A) capable of switching up to 350 V (peak AC) and 0.12 A continuous current. - **2 Isolated Digital Inputs:** Optically isolated channels (non-polarity sensitive) supporting up to 24 V input range with interrupt capability on both channels. - **High Isolation:** 1500 V RMS isolation for relay outputs and 2500 V RMS isolation for digital inputs ensure robust electrical separation between field and system circuits. - **Relay Readback Function:** Allows software to verify the actual ON/OFF status of each relay output. - **Change-of-State (COS) Detection:** Interrupt generation on digital input state changes (rising edge detection) to reduce CPU polling overhead. - **LED Indicators:** Onboard LEDs display the status of each relay output; external LED connectors (JP1, JP2) allow remote visual indication. - **Board ID Function:** DIP switch-configurable board ID for easy identification when multiple PCI-7258 cards are installed in one system. - **Plug-and-Play PCI Interface:** Fully compliant with 32-bit PCI bus architecture; automatic resource allocation by BIOS. - **Software Support:** Comprehensive driver and library support for Windows and DOS environments, including LabVIEW®, VEE, ActiveX, OPC, and ISaGRAF™ integration. - **Compact Design:** Standard half-size PCI card (175 mm × 107 mm) suitable for industrial PCs and embedded systems.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PCI

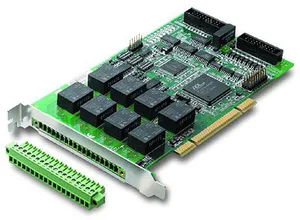

- **Universal PCI Compatibility:** Supports both 3.3V and 5V 32-bit PCI bus interfaces. - **High-Power Relay Outputs:** Eight non-latching SPST-NO + SPST-NC relays rated at 5A @ 250VAC or 5A @ 30VDC. - **Isolated Digital Inputs:** Eight opto-isolated channels with jumper-selectable AC-filtered or non-filtered modes. - **Relay Status Outputs:** Eight channels for external LED indication of relay states. - **Emergency Shutdown Input:** One channel for immediate system-safe state activation via DIP switch configuration. - **Initial State Configuration:** DIP switch allows defining relay output states at power-on. - **Built-in Watchdog Timer:** Ensures relays revert to a safe state if the host system halts or crashes. - **Change-of-State (COS) Detection:** Interrupt generation on input state transitions or rising edges on DI CH0/CH1. - **LED Indicators:** On-board LEDs display relay activation status. - **Pluggable Terminal Block:** 18-pin high-current connector for easy wiring and maintenance. - **Software Support:** Compatible with ADLINK PCIS-DASK driver library and DAQ-LVIEW PnP for LabVIEW integration. - **Safety & Compliance:** Meets EN61010-1 safety standards; CE and FCC Class A certified.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PCI

- **Single-Channel HDMI 1.4 Capture:** Supports one HDMI 1.4 input channel for simultaneous video and audio capture. - **PCI Express x4 Gen3 Interface:** High-bandwidth PCIe Gen3 interface ensures stable, low-latency data transfer between the capture card and host system. - **Full HD Video Capture:** Capable of capturing high-definition video signals up to 1080p resolution at standard frame rates. - **Embedded Audio Support:** Captures both video and embedded HDMI audio streams, maintaining synchronization between audio and video data. - **Real-Time Acquisition:** Designed for real-time video capture and processing with minimal frame delay, ideal for live applications. - **Compact Design:** 150 mm × 98 mm PCB size allows easy integration into standard PCIe slots in desktop or industrial chassis. - **High Reliability:** Built with industrial-grade components for continuous operation in mission-critical environments. - **Broad Compatibility:** Compatible with major operating systems and software development environments for easy integration into custom applications. - **Low CPU Overhead:** Hardware-based capture and DMA transfer minimize CPU utilization during operation. - **Scalable Integration:** Multiple cards can be installed in a single system for multi-channel capture configurations.

Manufacturer: Adlink Technology Inc.

Category: Frame Grabber

- **High-Definition Video Capture:** Supports HDMI 2.0 input with resolutions up to **4K/UHD (3840 × 2160) at 60 fps**, ensuring smooth, high-quality video acquisition. - **PCI Express Gen3 x4 Interface:** Provides high-bandwidth data transfer for real-time video streaming and minimal latency. - **Audio Capture Support:** Integrated audio input over HDMI for synchronized audio-video recording and streaming. - **Professional-Grade HDMI 2.0 Compatibility:** Ensures full compliance with HDMI 2.0 standards, supporting deep color, wide color gamut, and HDCP content protection (where applicable). - **Compact Form Factor:** Dimensions of **168 mm × 111 mm**, suitable for standard PCIe slots in desktop, workstation, and industrial PC environments. - **Low-Latency Streaming:** Optimized for real-time applications such as live broadcasting, video conferencing, surveillance, and machine vision. - **Multi-Platform Support:** Compatible with major operating systems and software frameworks for video capture and processing. - **Robust Build Quality:** Designed for continuous operation in demanding environments, with industrial-grade components ensuring reliability and longevity.

Manufacturer: Adlink Technology Inc.

Category: Frame Grabber

- **Full HD Uncompressed Capture:** Supports 1920 × 1080p at 60 frames per second (fps) with 170 MHz sampling rate. - **Multi-Format Input Support:** Accepts both digital (DVI 1.0, HDMI 1.3 non-HDCP) and analog (RGB, YPbPr) video signals. - **PCI Express® x4 Interface:** High-speed data transfer with full compliance to PCIe x4 standard. - **Hardware Color Space Conversion:** Real-time RGB/YUV/monochrome conversion offloads CPU processing. - **512 MB DDR2 SDRAM Frame Buffer:** Dedicated onboard memory for stable, high-throughput video streaming. - **Configurable EDID (Extended Display Identification Data):** Allows custom EDID configuration for display compatibility. - **Digital I/O and Triggering:** 4 TTL digital inputs, 4 TTL digital outputs, and 1 TTL trigger input/output for synchronization. - **FPGA-Based Processing:** Field Programmable Gate Array enables flexible, low-latency image processing. - **DirectShow SDK and API Support:** Includes comprehensive software development kit for Windows platforms. - **ViewCreatorPro™ Utility:** GUI-based configuration and testing tool for video capture, I/O, and EDID management. - **Applications:** Medical imaging, scientific imaging, military/defense, video surveillance, and HD video testing.

Manufacturer: Adlink Technology Inc.

Category: Frame Grabber

- **Full HD Uncompressed Capture:** Supports 1920×1080p at 60 fps with 10-bit ADC precision. - **Multi-Format Video Input:** HDMI, DVI, RGB, YPbPr, S-Video, and NTSC/PAL composite. - **Audio Capture:** HDMI and S/PDIF (optical Toslink and RCA coaxial) digital audio input. - **High Bandwidth:** 170 MHz DVI input bandwidth for high-speed data throughput. - **Color Depth Support:** RGB 32/30/24-bit, YCrCb 4:4:4/4:2:2, and 8-bit monochrome. - **Hardware Acceleration:** FPGA-based color space conversion and image cropping. - **Configurable EDID:** Software-configurable Extended Display Identification Data (EDID 1.3). - **HDCP Support:** High-Bandwidth Digital Content Protection compliant. - **DirectShow SDK:** Full software development kit for Windows DirectShow and LabVIEW. - **Cross-Platform Software:** Compatible with Windows XP, Vista, and Windows 7 (32/64-bit). - **ViewCreatorPro Utility:** GUI-based configuration and testing tool for video/audio capture. - **PXI Express Variant:** PXIe-HDV62A version compliant with PXI Express Rev. 1.0.

Manufacturer: Adlink Technology Inc.

Category: Frame Grabber

- **High-Speed Digital I/O:** 32 digital input and 32 digital output channels, all TTL-compatible, optimized for high-speed data acquisition and pattern generation. - **PCI Express® Interface:** Utilizes a single-lane (x1) PCI Express interface for high bandwidth and low latency communication with host systems. - **High Data Throughput:** Achieves up to 12 MB/s transfer rate using external 3 MHz clock or handshaking mode; 8 MB/s with internal 2 MHz timer pacer. - **Bus-Mastering DMA:** Supports direct memory access for both input and output operations, minimizing CPU load and maximizing throughput. - **Multiple Transfer Modes:** - Programmed I/O - Timer pacer mode (internal clock) - External clock mode - Handshaking mode (REQ/ACK signals) - **Programmable Timer/Counter:** Integrated 82C54-10 programmable counter with 4 MHz base clock for precise timing control of digital I/O operations. - **Interrupt Support:** Multiple programmable interrupt sources including EO_ACK, EI_REQ, and timers 0–2. - **Plug and Play Configuration:** Fully compliant with PCI Express Plug and Play standards; no jumper or DIP switch settings required. - **Software Support:** Compatible with Windows (XP, 2000, 2003, Vista, 7) and Linux. Supported by ADLINK’s DAQPilot, DAQBench, and legacy PCIS-DASK drivers. Integration available for LabVIEW™, MATLAB®, and .NET environments. - **Compact Design:** Half-size PCB (148 mm x 102 mm) suitable for space-constrained systems.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PCIe

- **16‑Channel, 16‑Bit Analog Voltage Outputs:** Provides 16 independent voltage output channels with high‑resolution 16‑bit digital‑to‑analog conversion. - **Bipolar Output Range:** ±10 V output range with ±5 mA maximum drive capability per channel. - **High Accuracy and Linearity:** Typical differential nonlinearity (DNL) ±1 LSB, gain error ±0.2 % maximum, monotonic to 15 bits. - **Fast Response:** Typical slew rate of 26 V/µs and settling time of 130 µs for a 20 V step. - **Integrated Digital I/O:** 4 TTL‑compatible digital inputs and 4 TTL‑compatible digital outputs for auxiliary control and monitoring. - **PCI Express® x1 Interface:** Fully compliant with PCIe specifications, providing high‑speed data transfer and plug‑and‑play configuration. - **On‑board DC/DC Converter:** Ensures stable analog output performance independent of system power fluctuations. - **Compact Form Factor:** 168 mm × 112 mm PCB size suitable for standard PCIe slots. - **Software Support:** Compatible with Windows 7/8 (x86/x64) and Linux; supported by ADLINK DAQPilot, DAQMaster, and legacy PCIS‑DASK drivers. - **Third‑Party Integration:** Provides APIs and SDKs for LabVIEW™, MATLAB®, Visual C++, Visual Basic, and .NET environments. - **Backward Compatibility:** 100 % register‑level and driver compatibility with PCI‑6216V‑GL.

Manufacturer: Adlink Technology Inc.

Category: D/A General Purpose PCIe

- **PCI Express x1 Interface:** Fully compliant with PCI Express x1 bus standard, supporting plug-and-play configuration. - **16 Latching Relay Outputs:** Each output is a single-pole double-throw (SPDT) Form C relay with latching capability, maintaining output state even when power is removed. - **16 Optically Isolated Digital Inputs:** Non-polar, optically isolated inputs with optional RC filtering for noise suppression. - **Relay Output Readback:** Allows software to verify the current state of each relay output. - **Change-of-State (COS) Detection:** Interrupt generation on digital input state changes for channels 0 and 1, enabling event-driven control. - **LED Indicators:** Onboard LEDs display relay status; external LED connectors are also available for remote indication. - **Board ID Function:** Hardware DIP switch allows unique identification of multiple cards in a single system. - **Power-Saving Latching Relays:** Reduces power consumption by maintaining relay state without continuous coil energization. - **High Isolation:** 1500 V RMS isolation for relay outputs and 2500 V RMS isolation for digital inputs. - **Compact Design:** Half-size PCIe form factor (175 mm x 107 mm). - **Software Support:** Compatible with ADLINK’s PCIS-DASK driver library and SDK for Windows and LabVIEW environments. - **Environmental Compliance:** Fully RoHS and WEEE compliant.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PCIe

- **High-Resolution Analog Input:** 14-bit resolution with up to 800 kS/s sampling rate for single-channel operation, ensuring precise signal capture and analysis. - **Flexible Channel Configuration:** Supports **16 single-ended (SE)** or **8 differential (DI)** analog input channels, allowing users to adapt to various signal configurations and noise environments. - **Wide Input Voltage Range:** Programmable input ranges of ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, and ±0.3125 V accommodate diverse signal levels. - **High Signal Integrity:** Input impedance of 10 MΩ and DC coupling minimize loading effects and preserve signal fidelity. Overvoltage protection up to ±20 V ensures robust operation in industrial environments. - **Dual 16-bit Analog Outputs:** Two analog output channels with ±10 V range, 16-bit resolution, and 10 V/μs slew rate for precise waveform generation and control applications. - **Comprehensive Digital I/O:** 16 digital input and 16 digital output channels, TTL-compatible, supporting up to 1 MHz signal frequency for high-speed digital control and monitoring. - **Integrated Timer/Counter:** Two 32-bit general-purpose timer/counter channels with internal and external clock sources up to 33 MHz and 8 MHz respectively, enabling precise timing, event counting, and frequency measurement. - **High-Speed Data Transfer:** Supports both **Polling** and **Direct Memory Access (DMA)** modes for efficient data throughput and reduced CPU overhead. - **Multiple Trigger Sources:** Software, digital, and analog trigger options for flexible synchronization of data acquisition and generation tasks. - **Compact PCIe Form Factor:** Designed for standard PCI Express slots, offering high bandwidth and reliable connectivity for modern PCs and industrial computers.

Manufacturer: Adlink Technology Inc.

Category: A/D Intelligent PCIe

- **Multifunction DAQ Card:** Combines analog input, analog output, digital I/O, and counter/timer functions on a single PCIe board. - **High-Resolution Analog Input:** 16-bit resolution with up to 1 MS/s sampling rate for single-channel acquisition, ensuring precise signal capture. - **Flexible Channel Configuration:** Supports 16 single-ended (SE) or 8 differential (DI) analog input configurations. - **Wide Input Range:** Programmable input voltage ranges of ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, and ±0.3125 V for versatile signal compatibility. - **High Signal Integrity:** 90 dB signal-to-noise ratio (SNR) and 14.5-bit effective number of bits (ENOB) for accurate analog measurements. - **Dual 16-bit Analog Outputs:** Two independent analog output channels with ±10 V range and 10 V/μs slew rate for waveform generation and control applications. - **Comprehensive Digital I/O:** 16 digital input and 16 digital output channels, TTL-compatible, supporting up to 1 MHz switching frequency. - **High-Speed Data Transfer:** Supports both **Polling** and **Direct Memory Access (DMA)** modes for efficient data throughput. - **Multiple Trigger Sources:** Software, digital, and analog triggering options for flexible synchronization and event-driven acquisition. - **Onboard FIFO Buffers:** Dedicated FIFO memory for each subsystem—4K samples for analog input, 1K samples (shared) for analog output, and 512 samples for digital I/O—to ensure continuous data streaming without loss. - **Precision Timing:** Two 32-bit general-purpose timer/counter channels with internal and external clock options up to 32 MHz. - **Compact PCIe Form Factor:** Designed for easy integration into standard PCI Express slots in desktop or industrial PCs. - **Robust Electrical Design:** ±20 V continuous overvoltage protection on analog inputs and low output impedance (

Manufacturer: Adlink Technology Inc.

Category: A/D Intelligent PCIe

- **High-Resolution Analog Input:** 16-bit resolution with up to 250 kS/s sampling rate for single-channel operation, ensuring precise signal capture and analysis. - **Flexible Channel Configuration:** Supports 16 single-ended (SE) or 8 differential (DI) analog input channels, allowing users to adapt to various measurement topologies. - **Wide Input Range:** Programmable input voltage ranges of ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, and ±0.3125 V accommodate diverse signal levels. - **High Signal Integrity:** 10 MΩ input impedance and 90 dB signal-to-noise ratio (SNR) deliver accurate, low-noise measurements. - **Dual 16-bit Analog Outputs:** Two analog output channels with ±10 V range and 10 V/μs slew rate for precise waveform generation and control applications. - **Comprehensive Digital I/O:** 16 digital input and 16 digital output channels, TTL-compatible, supporting up to 1 MHz frequency operation. - **Advanced Triggering:** Multiple trigger sources including software, digital, and analog triggers for flexible synchronization. - **Efficient Data Handling:** Onboard FIFO buffers for analog input (4K samples), analog output (1K samples shared), and digital I/O (512 samples each) ensure smooth data throughput. - **High-Speed Data Transfer:** Supports both polling and DMA (Direct Memory Access) modes for optimized system performance. - **Integrated Timer/Counter:** Two 32-bit general-purpose timer/counter channels with internal and external clock options up to 32 MHz. - **Compact PCIe Form Factor:** Designed for easy integration into modern PC-based systems with a standard PCI Express interface. - **Robust Overvoltage Protection:** Continuous ±20 V protection on analog input channels safeguards against accidental overvoltage conditions.

Manufacturer: Adlink Technology Inc.

Category: A/D Intelligent PCIe

PCIe 32SE/16DI AI 16bit 4MHz SE Scanning 1MS/s FIFO 4k, Range ±10/±5/±2,5/±1,25/±0,625/±0,3125V, 4DA 16bit ±10V 4k FIFO, 16TTL DI/DO, Timer/Counter 432bit, driver/SDK Windows 7/10/11 x86/x64 or later, Linux Driver and SDK, LabVIEW C/C++ Visual Basic Visual Studio.NET, Software Utility ACE Soft-Front Panel, LH 181,05mm * 126,72mm, 68-pin SCSI-type female connector, Adlink

Manufacturer: Adlink Technology Inc.

Category: A/D Intelligent PCIe

- **High-Resolution Analog Input:** 16-bit resolution with up to 500 kS/s sampling rate for precise signal measurement and analysis. - **Flexible Channel Configuration:** Supports **32 single-ended (SE)** or **16 differential (DI)** analog input channels, allowing users to balance between channel count and noise immunity. - **Wide Input Range:** Programmable input voltage ranges of ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, and ±0.3125 V accommodate a variety of signal levels. - **High Signal Integrity:** Input impedance of 10 MΩ and DC coupling ensure accurate signal capture with minimal loading effect. Continuous overvoltage protection up to ±15 V enhances durability. - **Onboard FIFO Buffer:** 4 k-sample onboard FIFO buffer supports efficient data streaming and reduces data loss during high-speed acquisition. - **Multiple Trigger Sources:** Supports software, digital, and analog triggering for flexible synchronization with external events or system processes. - **Isolated Digital I/O:** 16 isolated digital input channels and 16 isolated digital output channels provide robust protection against ground loops and electrical interference. - **High-Speed Data Transfer:** Supports both **Polling** and **Direct Memory Access (DMA)** modes for optimized data throughput and reduced CPU load. - **Precision Timer/Counter:** One 32-bit general-purpose timer/counter with internal and external clock options for timing, frequency measurement, and event counting. - **Compact PCIe Form Factor:** Designed for standard PCI Express slots, ensuring compatibility with modern PC-based control and monitoring systems. - **Industrial-Grade Reliability:** Isolation, overvoltage protection, and high signal-to-noise ratio (SNR) of 90 dB ensure stable operation in electrically noisy environments.

Manufacturer: Adlink Technology Inc.

Category: A/D Intelligent PCIe

- **PCI Express x1 lane interface** for high‑speed data throughput and plug‑and‑play installation. - **4‑axis pulse train output** for stepper or servo motor control. - **Pulse output rate up to 6.55 MHz**, supporting OUT/DIR, CW/CCW, and AB phase modes. - **2‑ to 4‑axis linear interpolation** and **2‑axis circular interpolation** for complex motion paths. - **Helical and continuous interpolation** for smooth multi‑axis contouring. - **Trapezoidal and S‑curve velocity profiles** with programmable acceleration/deceleration. - **Position/speed override** capability for dynamic motion adjustment. - **13 home return modes** with automatic search and configurable logic. - **Hardware emergency input** and **software security protection** via EEPROM key. - **16‑channel TTL digital inputs and 16‑channel TTL digital outputs** with 2500 Vrms isolation. - **Position compare and latch functions** for high‑speed triggering and synchronization. - **Manual pulse generator (MPG) interface** for manual axis control. - **Supports up to 12 PCIe‑8154 cards** in a single system for large‑scale automation. - **Compatible with major servo brands** (Mitsubishi MR‑J3A/J4A, Panasonic MINAS A4/A5, Yaskawa Sigma V). - **Software suite:** MotionCreatorPro and SDK libraries for Windows and Linux.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCIe

- **Simultaneous 4-Channel Analog Input:** Four differential analog input channels with simultaneous sampling capability, ensuring accurate multi-channel signal acquisition without phase delay. - **High Resolution and Speed:** 16-bit resolution with a maximum sampling rate of 1 MS/s per channel, suitable for high-precision measurement applications. - **Flexible Input Ranges:** Programmable input voltage ranges of ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, and ±0.3125 V to accommodate a wide variety of signal levels. - **Robust Overvoltage Protection:** Continuous ±30 V overvoltage protection ensures long-term reliability and protection against accidental signal surges. - **Large Onboard FIFO Buffers:** Dedicated onboard FIFO buffers for each subsystem—4K samples for analog input, 1K samples shared for analog output, and 512 samples for digital I/O—support efficient data streaming and reduce CPU overhead. - **Dual 16-bit Analog Outputs:** Two analog output channels with ±10 V range, 10 V/μs slew rate, and 2 μs settling time for precise waveform generation and control applications. - **Comprehensive Digital I/O:** 16 digital input and 16 digital output channels, TTL-compatible, supporting up to 1 MHz frequency operation for high-speed digital control and monitoring. - **Advanced Triggering and Synchronization:** Multiple trigger sources (software, digital, analog) for flexible acquisition and generation control. - **High Signal Integrity:** 80 dB signal-to-noise ratio (SNR) and 13-bit effective number of bits (ENOB) ensure accurate and low-noise signal measurement. - **Versatile Timer/Counter Functions:** Two 32-bit general-purpose timer/counter channels with internal and external clock options up to 33 MHz internal or 8 MHz external, supporting frequency measurement, pulse generation, and event counting. - **PCI Express Interface:** High-speed PCIe connectivity for reliable data transfer and compatibility with modern PC-based systems. - **Compact Form Factor:** Slim, space-efficient design suitable for integration into industrial PCs and embedded systems.

Manufacturer: Adlink Technology Inc.

Category: A/D Intelligent PCIe

PCIe 64SE/32DI AI 16bit 4MHz SE Scanning 1MS/s FIFO 4k, Range ±10/±5/±2,5/±1,25/±0,625/±0,3125V, 4DA 16bit ±10V 4k FIFO, 16TTL DI/DO, Timer/Counter 432bit, driver/SDK Windows 7/10/11 x86/x64 or later, Linux Driver and SDK, LabVIEW C/C++ Visual Basic Visual Studio.NET, Software Utility ACE Soft-Front Panel, LH 181,05mm * 126,72mm, 68-pin SCSI-type female connector, Adlink

Manufacturer: Adlink Technology Inc.

Category: A/D Intelligent PCIe

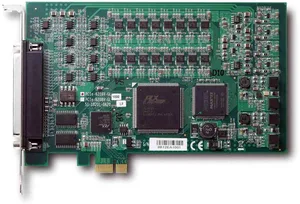

- **PCI Express® x1 Interface:** Fully compliant with PCI Express standards, ensuring high-speed data transfer and plug-and-play installation. - **High-Resolution Analog Output:** 8 independent 16-bit digital-to-analog (D/A) channels with ±10 V bipolar output range. - **Fast Settling Time:** Typical settling time of 130 µs for a 20 V step, enabling rapid signal updates. - **High Slew Rate:** 26 V/µs typical, supporting dynamic signal generation. - **Output Drive Capability:** ±5 mA maximum per channel, suitable for direct connection to control systems or instrumentation. - **Integrated DC/DC Converter:** Provides stable internal power for analog circuitry. - **Digital I/O Support:** 4 TTL-compatible digital inputs and 4 TTL-compatible digital outputs for auxiliary control and monitoring. - **Software and OS Compatibility:** Supports Windows 7/8 (x86/x64) and Linux; compatible with LabVIEW™, MATLAB®, C/C++, Visual Basic, and Visual Studio.NET. - **Backward Compatibility:** 100% compatible with PCI-6208V hardware and software. - **Compact Design:** 168 mm × 112 mm PCB size, optimized for modern PCIe slots. - **Plug and Play Configuration:** Automatic resource allocation via PCIe PnP BIOS.

Manufacturer: Adlink Technology Inc.

Category: D/A General Purpose PCIe

- **PCI Express x1 lane interface** for high‑speed data throughput and plug‑and‑play configuration. - **8‑axis control** for stepper or servo motors with pulse‑train input drivers. - **Pulse output rate up to 6.55 MHz**, supporting OUT/DIR, CW/CCW, and AB‑phase modes. - **Linear, circular, and helical interpolation** across 2–4 axes for complex motion trajectories. - **Multi‑axis continuous interpolation** for contour following and smooth path transitions. - **Position and speed override on the fly** for dynamic motion adjustment. - **Hardware emergency input** and software security protection (EEPROM‑based). - **Supports up to 12 cards per system**, enabling control of up to 96 axes. - **16‑channel TTL digital inputs and 16‑channel TTL digital outputs**, optically isolated to 2500 Vrms. - **High‑speed encoder feedback** up to 6.55 MHz (4×AB phase). - **13 home return modes**, hardware backlash compensation, and vibration suppression. - **Trapezoidal and S‑curve velocity profiles** for smooth acceleration/deceleration. - **Simultaneous start/stop synchronization** across multiple axes or cards. - **Manual pulse generator (MPG) interface** for manual positioning. - **Comprehensive software support** including MotionCreatorPro2, Windows and Linux SDKs, and sample code for VC++, C#, and VB.NET. - **Compatible servo brands:** Mitsubishi MR‑J3A/J4A, Panasonic MINAS A4/A5, Yaskawa Sigma V, and any pulse‑train‑controlled servo/stepper drive.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCIe
