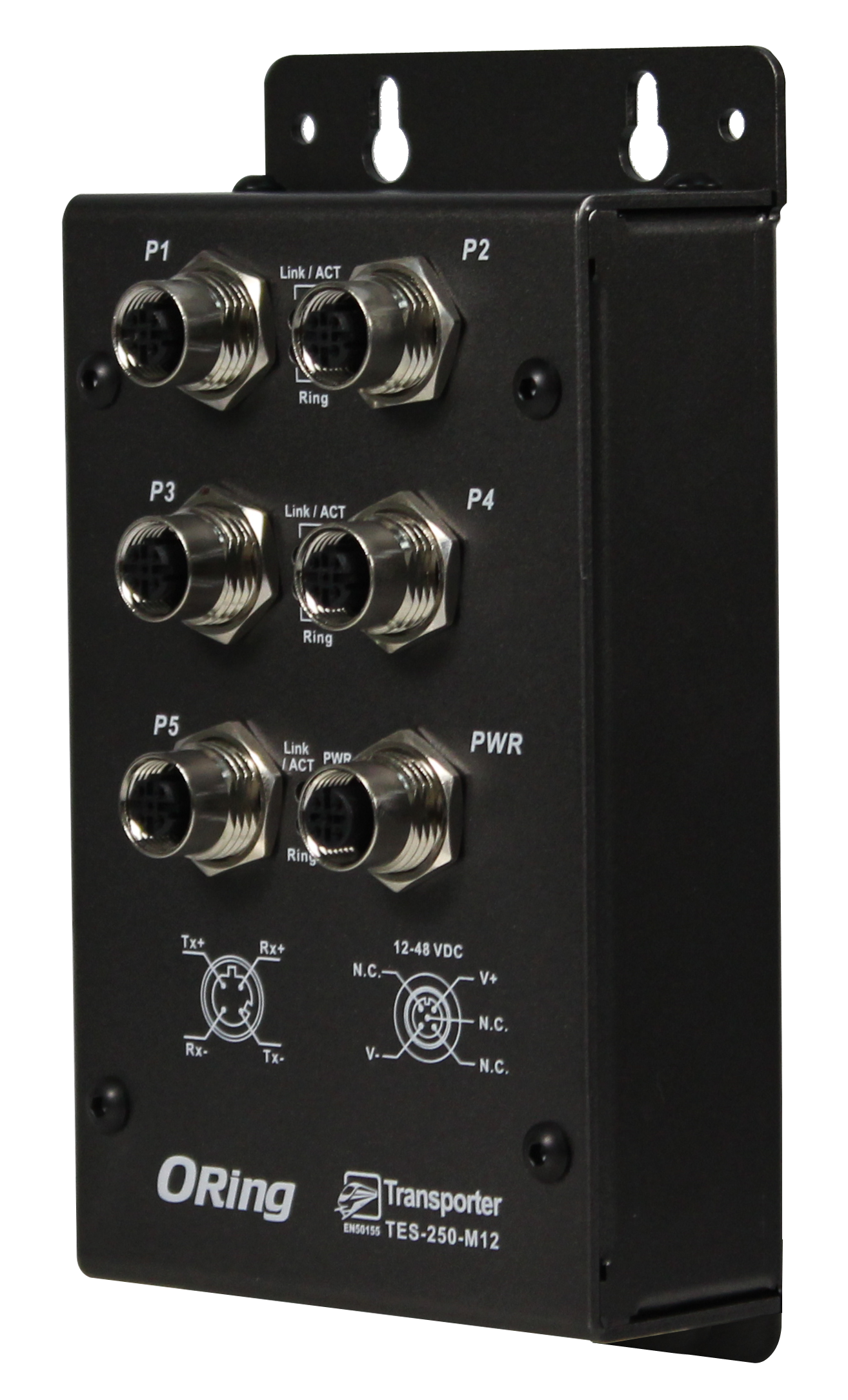

TES-250-M12 - Oring

Lite-managed Switch IP40 5*100TX M12 Connector EN50155

Industrial Ethernet Unmanaged Switches for Railway Applications compliant to EN50155.
490,00 €
incl. VAT 583,10 €

Description

  • EN50155 5-port lite-managed Ethernet switch with 5*10/100TX M12 connectors
  • Supports STP/RSTP standard redundant protocol
  • SNMP v1/v2c/v3 support for secured network management
  • Supports LLDP protocol
  • Event notification through Syslog / E-mail / SNMP
  • Rugged IP40 metal case wall mounting enabled
  • 88.9*40*178.2mm
  • ~375gr
  • DC power input 12..48VDC ~3W
  • extended -40°..70°C operating temperature

Details

  • Width: 88.9 mm
  • Height: 40 mm
  • Depth: 178.2 mm
  • Net weight: 0.375 kg
  • Weight: 0.8kg
  • Form factor: Box
  • Manufacturer: Oring
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8517 6200 900
