- **Dedicated Interface for Mitsubishi J3B Servo Drives:** Specifically engineered to connect Mitsubishi J3B series servo amplifiers to Adlink PCI-8392/8392H motion control cards. - **Optimized Signal Routing:** Provides organized terminal connections for control signals, feedback, and I/O lines, minimizing wiring complexity and reducing installation time. - **Industrial-Grade Design:** Built with durable materials and high-quality connectors to ensure stable operation in industrial environments. - **DIN-Rail Mountable:** Compact form factor with DIN-rail mounting capability for easy integration into control cabinets. - **Plug-and-Play Compatibility:** Designed for direct connection with Adlink motion control cards, eliminating the need for custom wiring harnesses. - **Clear Terminal Labeling:** Each terminal is clearly marked for signal identification, simplifying maintenance and troubleshooting. - **High Signal Integrity:** Shielded design and optimized PCB layout minimize electrical noise and ensure reliable signal transmission between controller and servo drive. - **Supports Multi-Axis Motion Control:** Enables connection of multiple servo channels when used with compatible Adlink motion control hardware. - **Flexible Configuration:** Supports various signal types including digital I/O, encoder feedback, and analog control signals depending on the connected servo system.

Manufacturer: Adlink Technology Inc.

Category: Digital Panels

- **Wide Input Voltage Range:** Switchable dual input range of 85–132 VAC or 170–264 VAC, allowing flexible operation in both 110V and 230V AC mains environments. - **Stable DC Output:** Provides a regulated 24VDC output with a maximum continuous current of 3A, suitable for powering sensors, controllers, relays, and other 24VDC devices. - **Overload Protection:** Integrated overload and short-circuit protection ensures safe operation and prevents damage to connected equipment. - **Compact Panel-Mount Design:** Dimensions of 127 × 97 × 41 mm enable easy integration into control panels and enclosures with limited space. - **High Efficiency and Reliability:** Designed for continuous industrial operation with stable performance under varying load and temperature conditions. - **Frequency Compatibility:** Operates at 47–63 Hz, supporting global power grid standards. - **Switchable Input Selector:** Manual or automatic input voltage selection for flexible deployment across regions. - **Industrial-Grade Construction:** Built with durable materials and components to withstand vibration, temperature fluctuations, and electrical noise typical of industrial environments. - **Ease of Installation:** Panel-mount form factor with accessible terminals for quick wiring and secure mechanical attachment. - **Manufacturer Quality Assurance:** Produced by Adlink, a recognized manufacturer of industrial computing and power solutions, ensuring compliance with quality and performance standards.

Manufacturer: Adlink Technology Inc.

Category: RS232 Measure And Control Modules

- **Universal AC Input:** Accepts a wide input voltage range from 90 VAC to 264 VAC, supporting both 50 Hz and 60 Hz mains frequencies (47–63 Hz). This ensures compatibility with international power standards and stable operation under varying supply conditions. - **Multi-Output Design:** Provides three independent DC outputs—24 VDC at 1 A, 12 VDC at 1 A, and 5 VDC at 3 A—allowing simultaneous powering of multiple devices or subsystems with different voltage requirements. - **Compact Panel Mount Form Factor:** Designed for direct integration into control panels or enclosures, with a compact footprint of 127 mm × 97 mm × 41 mm. - **Overload Protection:** Built-in overload and short-circuit protection on all outputs ensures safe operation and protects connected equipment from damage due to excessive current draw. - **High Efficiency and Reliability:** Engineered for continuous industrial operation, providing stable voltage regulation and thermal performance under varying load conditions. - **Global Compatibility:** Full-range AC input and compliance with international electrical standards make it suitable for deployment in diverse regions and environments. - **Industrial-Grade Construction:** Rugged design suitable for automation, instrumentation, and embedded control systems.

Manufacturer: Adlink Technology Inc.

Category: RS232 Measure And Control Modules

- **Dedicated Interface for PCI-8254/8258:** Specifically designed to match the pinout and signal configuration of ADLINK’s PCI-8254 and PCI-8258 cards, ensuring direct compatibility and simplified wiring. - **Panel-Mount Terminal Board:** Provides a structured, panel-mountable interface for field wiring, ideal for control panels, test benches, and industrial enclosures. - **High-Density Terminal Layout:** Offers multiple screw-type or spring-clamp terminal points for secure and vibration-resistant wire connections. - **Signal Labeling and Identification:** Clearly labeled terminal positions corresponding to the I/O channels of the PCI-8254/8258 cards, minimizing wiring errors and simplifying troubleshooting. - **Robust Construction:** Built with industrial-grade materials to withstand mechanical stress, temperature variations, and electrical noise typical of industrial environments. - **Ease of Integration:** Designed for plug-and-play connectivity with ADLINK’s flat cable assemblies, enabling quick connection between the PCI card and the terminal board. - **Flexible Mounting Options:** Supports DIN-rail or panel mounting, allowing integration into various control cabinet configurations. - **Enhanced Maintainability:** Modular design allows easy replacement or reconfiguration without disturbing existing wiring.

Manufacturer: Adlink Technology Inc.

Category: Digital Panels

- **Integrated Cold Junction Compensation (CJC):** Built-in temperature sensor circuit for thermocouple measurement accuracy. The CJC circuit compensates for ambient temperature variations at the connection point, ensuring precise thermal readings. - **Signal Conditioning for Each Channel:** Each analog input channel includes onboard signal conditioning circuitry, allowing for stable and noise-free signal transmission to the data acquisition card. - **Dual Wiring Configurations:** Supports both **single-ended** and **differential** input wiring modes, providing flexibility for various measurement setups. - **High-Quality Connectivity:** Equipped with a **37-pin D-sub female connector** for direct interface with ADLINK DAQ cards and **screw terminals** for secure field wiring. - **Compatibility:** Designed for use with multiple ADLINK analog input and multifunction DAQ cards, including: - PCI-9112 - PCI-9111 Series - ACL-8312/8316 - ACL-8112 Series - ACL-8216 - ACL-8126 - **Compact and Durable Design:** PCB dimensions of 168 mm × 114 mm, suitable for tabletop or panel mounting using included nylon standoffs. - **Included Accessories:** Supplied with an **ACL-10137-1 cable** for direct connection to compatible DAQ cards. - **Ease of Installation:** Plug-and-play connection via DB-37 interface and screw terminals simplifies setup and maintenance.

Manufacturer: Adlink Technology Inc.

Category: Analog Panels

- **8 Single‑Ended Analog Input Channels:** 12‑bit resolution with programmable gain (×1, ×2, ×4, ×8, ×16). - **Programmable Input Ranges:** ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, ±0.3125 V. - **High Sampling Rate:** Up to 50 kS/s (30 kS/s typical). - **On‑Chip Sample & Hold:** Ensures stable signal acquisition. - **1 Analog Output Channel:** 12‑bit monolithic multiplying DAC with 0–5 V or 0–10 V output range. - **16 Digital Input and 16 Digital Output Channels:** TTL/DTL compatible. - **Programmable Counter/Timer:** 82C54 device with 32‑bit pacer source (two cascaded 16‑bit counters). - **Multiple Trigger Modes:** Software, internal timer pacer, and external trigger. - **Interrupt Support:** Programmable IRQ levels (IRQ2–IRQ7). - **Data Transfer Modes:** Polling or interrupt‑driven. - **Rugged Connectors:** 37‑pin D‑sub for analog I/O, two 20‑pin IDC connectors for digital I/O. - **Compact PCB:** 158 mm × 108 mm form factor. - **Software Support:** DOS C/C++ library, Windows DLL (ACLS‑DLL2), and LabVIEW interface (ACLS‑LVIEW). - **Factory Calibration:** Adjustable via onboard variable resistors (VR1–VR5). - **Compatibility:** Fully compatible with NuDAQ software and daughter boards (ACLD‑9137, 9182, 9185, 9188).

Manufacturer: Adlink Technology Inc.

Category: A/D General Purpose ISA

- **Dual Independent CAN Channels:** Two fully isolated CAN ports capable of independent or bridged operation. - **CAN 2.0A/B Compatibility:** Compliant with Bosch CAN specification 2.0 parts A (11‑bit) and B (29‑bit). - **Optical Isolation:** 1000 Vrms galvanic isolation between CAN bus and logic circuitry, ensuring protection against ground loops and electrical surges. - **High‑Speed Communication:** Programmable transfer rate up to 1 Mbps; supports standard DeviceNet baud rates of 125 Kbps, 250 Kbps, and 500 Kbps. - **Integrated CAN Controller:** Utilizes Philips SJA1000 CAN controller with advanced bus arbitration, error detection, automatic retransmission, and error correction. - **Direct Memory Mapping:** Provides memory‑mapped access to CAN controller registers for efficient data handling. - **Software Programmable Addressing:** Base I/O address and memory mapping configurable via DIP switch and software. - **Bridge Function Support:** Enables inter‑port communication for network bridging or redundancy. - **PC/104 Industry Form Factor:** Compact, stackable design for embedded and industrial PC applications. - **Comprehensive Software Support:** Includes DOS library, Windows 95/98/NT drivers, and example programs. - **DeviceNet, CANopen, and SDS Protocol Support:** Provides a powerful master interface for higher‑layer industrial communication protocols. - **Diagnostic LEDs:** On‑board LEDs for port status indication (supported on cPCI‑7841 and PM‑7841). - **Termination Control:** On‑board 120 Ω termination resistors selectable via jumpers (JP1, JP2). - **Robust Environmental Tolerance:** Designed for 0 °C to 60 °C operation and up to 95% non‑condensing humidity.

Manufacturer: Adlink Technology Inc.

Category: CAN Bus

- **48 TTL Digital I/O Lines:** Provides 48 channels of TTL-level digital input/output, configurable in groups for flexible control and monitoring. - **PC/104+ Interface:** Fully compliant with the PC/104+ (PCI-based) embedded computing standard, ensuring stackable, modular integration with other PC/104+ boards. - **Opto 22 Compatibility:** Pinout and signal configuration compatible with Opto 22 digital I/O racks and modules, simplifying system expansion and integration. - **Onboard Intel 8254 Timer/Counter:** Three 16-bit programmable counters for event counting, frequency generation, or timing control. - **32-bit Watchdog Timer:** Provides system reliability by monitoring system operation and triggering a reset or interrupt in case of software or hardware failure. - **Compact Form Factor:** Measures **96 mm x 90 mm**, conforming to the PC/104+ mechanical standard for embedded systems. - **High-Speed Digital I/O:** Supports fast TTL-level signal switching suitable for real-time control and data acquisition. - **Industrial-Grade Design:** Engineered for embedded and industrial environments with robust electrical characteristics and long-term reliability. - **Software Support:** Compatible with major operating systems and development environments; driver and library support available from ADLINK. - **Flexible Configuration:** Programmable direction control for each I/O port, allowing dynamic switching between input and output modes.

Manufacturer: Adlink Technology Inc.

Category: PC/104

- **PC/104‑Plus Bus Interface:** Fully compliant with the PC/104‑Plus (PCI‑based) stackable bus standard, supporting 32‑bit PCI signaling. - **8 Relay Outputs:** Four Form C (SPDT) and four Form A (SPST) relays for flexible switching configurations. - **8 Opto‑Isolated Digital Inputs:** Each input channel is isolated via photo‑couplers for noise immunity and safety. - **High Isolation Voltage:** 5000 Vrms channel‑to‑system isolation for digital inputs. - **LED Indicators:** On‑board LEDs display the energized status of each relay output for easy diagnostics. - **Jumper‑Selectable Input Filtering:** Each input channel can be configured individually for AC‑filtered or non‑filtered (DC) operation. - **Rotary Bus Configuration Switch:** Hardware rotary switch for assigning CLK, IDSEL, INT, REQ, and GNT signals according to module slot position in the PC/104‑Plus stack. - **Compact Form Factor:** 96 mm × 90 mm PCB dimensions suitable for embedded stack systems. - **Software Support:** Comprehensive driver and library support for Windows and DOS environments, including LabVIEW®, HP VEE™, DASYLab™, InTouch™, InControl™, ISaGRAF™, and OPC. - **Expandable Architecture:** Compatible with PCI‑7251 expansion modules (up to three) when used in PCI systems, providing up to 32 relays and 32 inputs. - **Industrial‑Grade Design:** Wide operating temperature range (0 – 60 °C) and high reliability (> 10 million relay operations).

Manufacturer: Adlink Technology Inc.

Category: PC/104

- **PC/104+ Bus Architecture:** Fully compliant with the PC/104+ (PCI) specification, supporting modular stack installation and signal multiplexing for CLK, IDSEL, INT, REQ, and GNT lines. - **High-Resolution A/D Conversion:** 12-bit analog-to-digital converter with up to **110 kHz sampling rate** for precise signal acquisition. - **Flexible Analog Input Configuration:** Supports **16 single-ended (SE)** or **8 differential (DI)** analog input channels, selectable via jumpers (JP1, JP4). - **Dual 12-bit D/A Outputs:** Two analog output channels with configurable voltage ranges of **0–5 V** or **0–10 V**, depending on internal reference settings. - **Programmable Counter/Timer:** Integrated **8254-compatible 3-channel, 16-bit programmable counter/timer** for event counting, frequency generation, or timing control. - **Large FIFO Buffer:** 512-word A/D FIFO for efficient data throughput and reduced CPU overhead. - **Configurable Reference Voltage:** Internal or external D/A reference voltage selection (JP5), with internal reference options of **–5 V or –10 V** (JP3). - **Rotary Switch Configuration:** Hardware rotary switch for assigning PCI bus signals according to module slot position in the PC/104+ stack. - **Compact Form Factor:** Standard PC/104+ dimensions (96 mm × 90 mm) suitable for embedded and industrial environments. - **Software Compatibility:** Compatible with the same software utilities as the PCI-9112 series (excluding DI/DO functions). - **Accessory Support:** Compatible with ADLINK’s ACLD and DIN series termination and signal conditioning boards for simplified wiring and thermocouple interfacing.

Manufacturer: Adlink Technology Inc.

Category: PC/104

- **Isolated Digital I/O:** 16 isolated digital input channels and 16 isolated digital output channels, providing electrical isolation up to **2500 Vrms** between channels and system logic. - **PC/104+ Interface:** Fully compliant with the PC/104+ (PCI-based) standard, enabling stackable, modular integration into embedded systems without the need for backplanes or external cabling. - **Compact Form Factor:** Measuring **96 mm × 90 mm**, the PCM-7230+ fits within the standard PC/104+ footprint, ideal for space-constrained embedded applications. - **High Reliability:** Designed for industrial-grade operation, with robust isolation, noise immunity, and long-term durability. - **Flexible I/O Configuration:** Supports both input and output operations, allowing users to interface with sensors, switches, relays, and actuators. - **High Isolation Voltage:** Up to **2500 Vrms** isolation ensures protection against voltage surges, ground loops, and electrical interference. - **Industrial Temperature Range (typical):** Suitable for operation in demanding environments where temperature, vibration, and electrical noise are factors. - **Ease of Integration:** Compatible with standard PC/104+ stacks and supported by ADLINK’s software drivers and SDKs for various operating systems. - **Low Power Consumption:** Optimized for embedded and mobile systems where power efficiency is critical.

Manufacturer: Adlink Technology Inc.

Category: PC/104

- **PC/104+ Standard Interface:** Fully compliant with the PC/104+ (PCI-based) bus architecture, enabling stackable embedded system integration. - **Four Isolated Communication Ports:** Provides four independent RS-422/RS-485 serial ports, each with galvanic isolation up to 500 VDC (typical) or 2500 Vrms (maximum), ensuring protection against ground loops and electrical noise. - **RS-422/RS-485 Selectable:** Each port can be configured via DIP switch or software to operate in RS-422 or RS-485 mode, offering flexibility for various serial communication standards. - **Auto Direction Flow Control:** Built-in automatic direction control for RS-485 communication eliminates the need for manual RTS signal handling, simplifying half-duplex communication. - **High-Speed Communication:** Supports baud rates from 50 to 115,200 bps per port, allowing concurrent high-speed data transmission across all channels. - **Intelligent UART Buffering:** Each port uses a 16C550A-compatible UART with a 16-byte FIFO buffer, reducing CPU overhead and improving data throughput. - **Multi-Card System Support:** Up to 4 PCM-2855+ modules (16 ports total) can be installed in a single system, with shared IRQ support for efficient resource utilization. - **Wide OS Compatibility:** Supports multiple operating systems including DOS, Windows 95/98, Windows NT, and QNX. Linux and UNIX drivers are available via ADLINK’s website. - **Industrial-Grade Design:** Designed for embedded and industrial environments, with an operating temperature range of 0°C to 55°C and humidity tolerance up to 95% non-condensing.

Manufacturer: Adlink Technology Inc.

Category: PC/104

- **Eight Isolated Analog Output Channels:** Each of the eight channels provides a 12-bit digital-to-analog conversion capability, allowing precise voltage output control for industrial process signals, actuator control, and instrumentation. - **12-bit Resolution:** Delivers fine granularity in output voltage levels, ensuring accurate analog signal generation suitable for control and simulation tasks. - **Channel-to-Channel Isolation:** Electrical isolation between channels and system bus enhances noise immunity and protects sensitive components from ground loops and transient voltages. - **PC/104+ Form Factor:** Fully compliant with the PC/104+ (PCI-based) embedded computing standard, enabling easy stacking with other PC/104/PC/104+ modules without backplane wiring. - **Compact Design:** Measuring only 96 mm × 90 mm, the PCM-6308V+ fits into space-constrained embedded systems and portable industrial controllers. - **Industrial-Grade Reliability:** Designed for continuous operation in industrial environments, with robust PCB design, high-quality components, and extended temperature tolerance. - **Flexible Output Ranges:** Supports configurable voltage output ranges (typical ±10 V or 0–10 V, depending on configuration), suitable for a wide range of analog control applications. - **Bus Isolation:** Isolation between the analog output circuitry and the PC/104+ bus ensures system stability and protects host electronics from electrical interference. - **Software Programmability:** Compatible with standard DAQ software libraries and drivers for Windows and Linux, enabling easy integration into control systems and custom applications. - **High Update Rate:** Optimized for fast analog output updates, supporting dynamic control and waveform generation.

Manufacturer: Adlink Technology Inc.

Category: PC/104

- **12-Axis SSCNET II Control:** Supports up to 12 servo amplifiers per card (6 for PCI-8366+ variant). - **High-Speed Serial Communication:** SSCNET II protocol with 5.625 MHz bit rate and 0.888 ms servo update cycle. - **Long-Distance Connectivity:** Supports up to 30 m cable length per 6-axis group. - **Onboard DSP:** TI TMS320C6711, 200 MHz, 1200 MFLOPS for real-time motion computation. - **Multi-Axis Synchronization:** All axes synchronized within SSCNET cycle for precise interpolation. - **Advanced Motion Profiles:** Supports trapezoidal and S-curve velocity profiles, linear and circular interpolation, and continuous trajectory motion. - **Integrated I/O:** 2 isolated digital inputs/outputs, 6 TTL outputs, 2 analog outputs, and encoder feedback channels. - **Software Tools:** Bundled with Motion Creator (Windows-based configuration and tuning software) and DLL libraries for C/C++/VB programming. - **Scalability:** Up to 15 cards per system, enabling control of up to 180 axes. - **Noise Immunity:** Differential serial communication minimizes EMI and improves reliability. - **Servo Diagnostics:** Real-time monitoring of servo parameters, alarms, and tuning data. - **Compact PCI Variant:** cPCI-8312H version supports 12 axes and dual HSL network ports.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCI

- **Ten Independent 16-bit Timer/Counters:** Each counter can operate independently or be cascaded for extended bit-width timing (up to 160-bit when all are cascaded). - **Cascaded 32-bit Timer:** Two counters (channels 11 and 12) are hardware-cascaded to form a 32-bit timer with a fixed 8 MHz base clock. - **Flexible Clock Source Selection:** Each counter can select its clock source from: - On-board 8 MHz oscillator - External clock input (up to 10 MHz) - Output of the previous counter (for cascading) - Cascaded 32-bit timer output - **Programmable De-bounce Filters:** Eleven channels of programmable de-bounce filters for external clock and interrupt inputs, with glitch rejection and programmable de-bounce clock up to 2 MHz. - **Dual Interrupt System:** Two interrupt sources—external interrupt input and cascaded counter output (counter #12)—allow flexible event handling and watchdog timer functionality. - **Digital I/O Capability:** - 8 TTL-compatible digital input channels - 8 TTL-compatible digital output channels - Programmed I/O data transfer mode - **High Reliability and Noise Immunity:** De-bounce filtering and TTL-level compatibility ensure stable operation in industrial environments. - **Plug-and-Play PCI Interface:** Fully compliant with PCI Local Bus Specification Rev. 2.0, supporting automatic resource allocation by BIOS. - **Software Support:** Comprehensive driver and library support for multiple operating systems and development environments, including LabVIEW®, HP-VEE™, and ActiveX (DAQBench™).

Manufacturer: Adlink Technology Inc.

Category: Counter/Timer PCI

- **Bus Interface:** - PCI-7256: 32-bit, 3.3V/5V PCI bus, Plug and Play compliant - PCIe-7256: PCI Express x1, Plug and Play compliant - **Relay Outputs:** - 16-channel latching SPDT (Form C) relays - Output state retained when power is off (latching mechanism) - Power-saving relay actuation design - Onboard and external LED indicators for relay status - **Digital Inputs:** - 16 optically isolated, non-polar digital input channels - 24V input range, with optional RC filtering - Change-of-State (COS) interrupt detection on all channels - Dedicated interrupt sources on channels 0 and 1 - **Isolation & Protection:** - 2500 V RMS isolation (input-to-system) - 1500 V RMS isolation (relay contacts) - Robust design for noisy industrial environments - **Additional Functionalities:** - Board ID switch for multi-card identification - Relay output readback capability - COS latch and interrupt control registers - Software libraries and drivers for multiple programming environments

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PCI

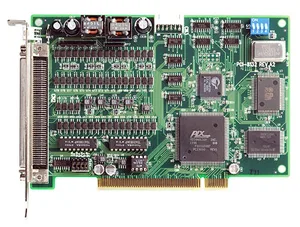

- **PCI Interface:** 32-bit PCI bus, Rev. 2.2, 33 MHz, Plug-and-Play compliant. - **Axes:** 2 independent motion control axes for servo or stepper motors. - **Pulse Output Rate:** 0.01 pps to 6.55 Mpps (max acceleration 245 Mpps²). - **Interpolation:** 2-axis linear and circular interpolation, continuous contouring. - **Velocity Profiles:** Supports trapezoidal and S-curve acceleration/deceleration. - **Home Return:** 13 programmable home return modes with auto-search capability. - **Position/Speed Override:** Real-time modification of position and velocity during motion. - **Backlash Compensation:** Hardware-based backlash and vibration suppression. - **Emergency Input:** Dedicated hardware emergency stop input (NO, short pin 60 & 67). - **Digital I/O:** 16 isolated inputs and 16 isolated outputs (2500 V RMS isolation). - **Encoder Feedback:** 28-bit up/down counter, 6.55 MHz input rate under 4×AB phase. - **Position Compare & Latch:** Hardware position compare and high-speed latch functions. - **Multi-Card Support:** Up to 12 PCI-8102 cards can operate simultaneously in one system. - **Security:** EEPROM-based user code protection for software/hardware security. - **Software Tools:** Bundled with MotionCreatorPro™ for configuration, testing, and debugging. - **API Library:** Over 100 thread-safe API functions for C/C++, VB, Delphi, and Linux environments. - **Isolation:** All digital I/O channels are optically isolated to 2500 V RMS. - **Compatibility:** Works with stepper, AC/DC servo, linear, or rotary motors with pulse-train input.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCI

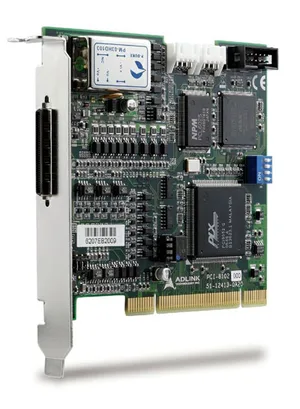

- **Two‑Axis Motion Control:** Supports two independent motion axes with pulse and direction outputs for stepper or servo motor drivers. - **High‑Speed Pulse Output:** Up to 2.4 Mpps per axis for high‑resolution, high‑speed motion. - **Interpolation:** 2‑D linear and circular interpolation for coordinated multi‑axis motion. - **Hardware Motion Engine:** NPM PCL‑5023 ASIC handles acceleration, deceleration, interpolation, and S‑curve profiles in hardware. - **Encoder Feedback:** 28‑bit up/down counter per axis for incremental encoder input (EA, EB, EZ). - **Flexible Pulse Modes:** OUT/DIR or CW/CCW pulse output; 1×, 2×, 4× AB‑phase or CW/CCW encoder input. - **On‑the‑Fly Control:** Velocity change during motion supported; position change supported on PCI‑8102 variant. - **Home and Limit Functions:** Programmable home search, positive/negative limit, and slow‑down inputs. - **Manual Pulser Interface:** Accepts handwheel encoder input for manual positioning. - **Simultaneous Start/Stop:** Hardware synchronization across multiple axes or multiple boards. - **Digital I/O:** 16 isolated digital inputs and 16 isolated digital outputs for general‑purpose control. - **Position Compare & Trigger:** Hardware comparator with dual trigger outputs (CMP1/CMP2) for vision or inspection synchronization. - **Interrupt Control:** 32 programmable interrupt factors for flexible event handling. - **Software Support:** MotionCreator and MotionCreator Pro utilities; C/C++, VB, Delphi, LabVIEW libraries for Windows 98/NT/2000/XP/7 and Linux (Red Hat/Fedora). - **Multi‑Board Operation:** Up to 12 cards (24 axes) supported in one system. - **Compact PCI Form Factor:** Half‑size PCI card with plug‑and‑play configuration.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCI

- **PCI Bus Interface:** Fully compliant 32‑bit PCI PnP interface for easy installation and automatic resource allocation. - **Encoder Counter System:** - Three independent 16‑bit up/down counters. - Quadrature (A/B phase) decoding with ×4 resolution multiplication. - Programmable third‑order digital de‑glitch filters for noise suppression. - Supports A/B phase, pulse/direction, and CW/CCW input modes. - Index latch registers for precise position referencing. - **PWM Generation:** - Three 12‑bit PWM waveform generators (U, V, W channels). - Complementary outputs with programmable dead‑time control. - Base frequency: 10 MHz. - PWM synchronized with interrupt timing for deterministic control. - **Digital I/O:** - 11 isolated digital inputs (DI) and 8 isolated digital outputs (DO). - Input voltage range: 0 – 24 V DC. - Output type: open‑collector Darlington transistors, up to 40 V DC, 500 mA per channel. - 5000 V rms isolation between field and logic circuits. - **Interrupt System:** - Dual programmable interrupt timers (INT0 and INT1). - Adjustable interrupt periods from 0.1 µs to 6.5 ms (INT0) and up to 1.7 s (INT1). - Single PCI IRQ level with dual interrupt sources. - **Compact Design:** Half‑size PCI card (162 mm × 105 mm) suitable for standard PC enclosures. - **Connectors:** - One 37‑pin D‑type female connector (encoder and PWM signals). - One 40‑pin flat‑cable header (digital I/O). - **Software Support:** - Drivers and libraries for MS‑DOS (Borland C++) and Windows 95. - C/C++ and Visual Basic APIs for high‑level control. - Example programs and DLLs included.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCI

- **Four Independent Motion Axes:** Supports up to four servo or stepper motor axes per card. - **High-Speed Pulse Output:** Generates up to 2.4 million pulses per second (2.4 Mpps) per axis. - **Interpolation Capabilities:** Supports 2-axis linear and circular interpolation for coordinated motion. - **Encoder Feedback:** 28-bit up/down counter for incremental encoder feedback on each axis. - **Flexible Motion Profiles:** Supports trapezoidal and S-curve acceleration/deceleration profiles. - **Simultaneous Start/Stop:** Hardware synchronization across multiple axes or multiple cards. - **Change Speed on the Fly:** Real-time velocity adjustment during motion. - **Manual Pulser Interface:** Dedicated connector for handwheel or manual pulse generator input. - **Programmable Interrupts:** Multiple interrupt sources for motion completion, limit switch activation, or error conditions. - **Multi-Card Support:** Up to 12 PCI-8134 cards (48 axes) can be installed in a single system. - **Optical Isolation:** 2500 Vrms isolation for all I/O signals ensures noise immunity and protection. - **Software Tools:** Includes Motion Creator (Windows GUI), C/C++ libraries, Visual Basic DLLs, ISaGRAF library, and LabVIEW VIs. - **Compact Design:** Half-size PCI card for easy integration into industrial PCs.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCI

- **PCI Bus Interface:** 32-bit PCI bus, plug-and-play compliant. - **Multi-Axis Control:** Supports up to 4 independent axes per card. - **High-Speed Pulse Output:** Up to 2.4 million pulses per second (Mpps) per axis. - **Interpolation:** 2-axis linear and circular interpolation for coordinated motion. - **Encoder Feedback:** 28-bit up/down counter for incremental encoder feedback. - **Motion Profiles:** Supports trapezoidal and S-curve acceleration/deceleration profiles. - **Home and Limit Functions:** Dedicated inputs for home, index (EZ), and limit switches. - **Interrupt Handling:** Programmable interrupt sources for motion events and I/O conditions. - **Manual Pulser Interface:** Direct connection for handwheel or manual pulse generator. - **Simultaneous Start/Stop:** Hardware synchronization across multiple axes or cards. - **Change Speed on the Fly:** Real-time velocity adjustment during motion. - **Software Support:** Comprehensive libraries for C/C++, Visual Basic, ISaGRAF, and LabVIEW. - **Multi-Card Operation:** Supports up to 12 cards (48 axes) in a single system. - **Isolation:** 2500 Vrms optical isolation for all I/O channels. - **Compact Design:** Half-size PCI card for easy integration into industrial PCs.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCI

- **High-Performance DSP Architecture:** Built-in digital signal processor (DSP) enables closed-loop control with hardware-based PID-FF algorithms and second-order filters for precise servo performance. - **High-Speed Servo Update Rate:** Supports up to **20 kHz** servo update rate, ensuring smooth and accurate motion control. - **Trajectory Cycle Time:** Up to **1 kHz** trajectory cycle time for real-time motion planning and execution. - **Hybrid Motion Command Output:** Provides both **±10 V analog command** and **pulse-train command** outputs, supporting a wide range of servo and stepper motor drives. - **Encoder Feedback:** Accepts encoder feedback frequencies up to **20 MHz** with digital filtering for noise immunity and precision. - **Multi-Task Execution:** Capable of executing up to **8 independent tasks simultaneously**, allowing complex motion sequences and parallel operations. - **High-Speed Position Latch and Comparison:** Position latch via ORG and Index signals; position comparison and trigger output up to **1 MHz**, ideal for high-speed inspection and synchronization tasks. - **Integrated Digital I/O:** Includes **16 isolated digital inputs** and **16 isolated digital outputs**, reducing the need for additional I/O cards. - **Programmable Interrupts and Watchdog Timer:** Provides programmable interrupt sources to the host PC and a watchdog timer for safety-critical applications. - **Manual Pulsar Interface:** Supports manual pulse generation for testing and manual control. - **Software Suite – MotionCreatorPro 2™:** Windows-based GUI for configuration, auto-tuning, frequency analysis, and diagnostics. Includes setup wizards and data sampling tools. - **Scalability:** Supports up to **16 cards** in a single system for large-scale multi-axis control.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCI

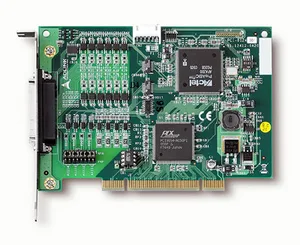

- **PCI Bus Interface:** Compliant with PCI Rev. 2.2, 32-bit, 33 MHz; supports both 3.3V and 5V signaling environments. Plug-and-Play compatible with automatic resource allocation by system BIOS. - **Encoder Input Channels:** Four 32-bit differential quadrature encoder counter input channels. Supports AB phase (1x, 2x, 4x), CW/CCW, and OUT/DIR pulse modes. Maximum encoder input frequency: **10 MHz**. Each channel includes EZ index input for homing and zeroing operations. - **Trigger Output Channels:** Four independent trigger outputs (open collector and TTL). Maximum trigger output frequency: **5 MHz**. Programmable pulse width from **0.1 µs to 3.2765 ms**. Trigger sources selectable from comparators, manual trigger, EZ signal, or timers. - **Comparators and FIFO:** 14 total comparators (4 for FIFO, 10 for linear functions). 4 FIFO buffers (1023 × 32-bit depth each) for high-speed position comparison. Supports automatic data reloading and continuous triggering. - **Linear Function Generator:** 10 independent linear comparison functions for generating continuous trigger sequences. Supports programmable start point, interval, and repeat count. - **Latch and Timer Functions:** Four high-speed latch inputs for position capture (10 MHz bandwidth). Four internal 14-bit timers with 400 ns base resolution. - **Isolation and Protection:** Optically isolated encoder, latch, and trigger I/O using PS9115 photo-couplers (2500 Vrms isolation). TTL I/O available for high-speed non-isolated applications. - **Software and Driver Support:** Windows 2000/XP/Vista WDM driver and DLL library. Compatible with VB, VC++, BCB, and Delphi programming environments. - **Board Index and Configuration:** 4-bit hardware board ID switch (0–15) for multi-board systems (up to 16 boards). Default trigger level configurable via DIP switch.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCI

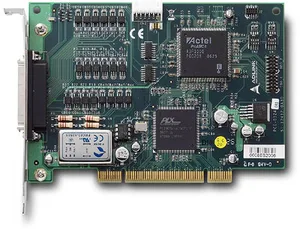

- **PCI Bus Compatibility:** Compliant with PCI Rev. 2.2, 32-bit/33 MHz interface; supports both 3.3V (PCI-X) and 5V (PCI) slots. - **Multi-Board Support:** 4-bit board ID switch allows up to 16 boards in one system, providing up to 64 encoder channels. - **Encoder Input Channels:** Four differential quadrature encoder counter inputs supporting 1x, 2x, and 4x AB phase decoding, CW/CCW, and OUT/DIR modes. - **High-Speed Triggering:** Four trigger output channels (open collector and TTL) with programmable pulse width from 0.1 µs to 3.2765 ms and maximum output frequency of 5 MHz. - **Advanced FPGA Architecture:** Utilizes an ACTEL A3P1000 FPGA with 40 MHz reference clock for high-speed comparison, FIFO buffering, and linear function generation. - **Flexible Comparison Functions:** 14 comparators (4 FIFO-based, 10 linear-based) for position comparison and trigger generation. - **FIFO and Linear Functions:** FIFO depth of 1023×32 bits for random position comparison; linear function supports continuous triggering with programmable intervals. - **Isolated I/O:** Optically isolated encoder, latch, and trigger channels (2500 Vrms isolation using PS9115 photo-couplers). - **Programmable Interrupts:** Multiple interrupt sources including FIFO status, latch events, TTL input, and linear function completion. - **Software Support:** Includes Windows 2000/XP/Vista WDM driver and DLL function library for C/C++ and Visual Basic development. - **Ease of Integration:** Plug-and-Play compliant; automatic resource allocation by system BIOS.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCI

- **6-Axis SSCNET Motion Control:** Supports up to six servo amplifiers per card using SSCNET II protocol. - **High-Speed Serial Communication:** 5.625 MHz SSCNET II link with up to 30 m cable length per axis group. - **Onboard DSP:** TI TMS320C6711, 200 MHz, 1200 MFLOPS floating-point performance for real-time motion processing. - **Multi-Card Scalability:** Up to 15 cards per system, enabling control of up to 90 axes. - **Advanced Motion Profiles:** Supports trapezoidal and S-curve velocity profiles, linear and circular interpolation, and continuous trajectory motion. - **Integrated I/O:** 2 isolated digital inputs/outputs, 6 TTL outputs, and 2 analog outputs (±10 V). - **Encoder Interface:** 3 channels of 32-bit incremental encoder inputs (A/B/Z), up to 5 MHz. - **Software Support:** Includes Windows-based Motion Creator utility and DLL libraries for C/C++/VB development. - **Synchronization:** All axes synchronized within SSCNET cycle (0.888 ms) for precise multi-axis interpolation. - **Noise Immunity:** Differential RS-485 physical layer ensures robust communication in industrial environments. - **Self-Diagnostics:** Dual LED indicators for power and status monitoring. - **Compact PCI Compatibility:** Also available as cPCI-8312H variant for CompactPCI systems.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PCI
